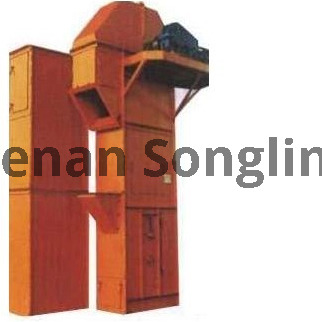

The bucket elevators have the advantages of big conveying capacity, high hoisting height, stable and reliable operation and long service life.
The Performance and parameter are in accordance with JB3926-85 Vertical Bucket Elevator, which is consistent with the international and foreign advanced standards and the towing circle chain is in accordance with MT36-80 High-Strength Circle Chain for Mine.
Features of elevator
1).available in different sizes and construction
2).easy erection and correct tension of chain
3).double row self aligning ball bearings
4).fabricated elevator chain with hardened pin and roller
5).single piece seamless buckets for different sizes suitable for different capacities
6).extended top shaft for drive purpose
7).removable plates
Application of elevator
The machine is applicable for conveying the power, grain and block materials, such as coal, cement, block, sand, clay and ore. The bucket elevator is allowed to convey materials with high temperature when armed with special circle chain structure.
Main Technical Parameters
Model | D160 | D250 | D350 | D450 |
Assembly | Belt slip form |
Law-hopper Transport capacity(m ³/h) | S
8 | Q
3 | S
21 | Q
11 | S
42 | Q
25 | S
69 | Q
48 |
Hopper-width (mm) | 160 | 250 | 350 | 450 |
Hopper-pitch (mm) | 300 | 400 | 500 | 640 |
Speed (m/s) | 1 | 1.25 | 1.25 | 1.25 |
Main wheel speed (r/min | 47 | 47 | 47 | 37 |
Max feeding size(mm | 25 | 35 | 45 | 55 |
Height of upgrading from the center(m | 4.8-30 | 4.8-30 | 4.3-30 | 4.5-29 |
Height(m) | H+0.9 | H+1.2 | H+1.2 | H+1.5 |
