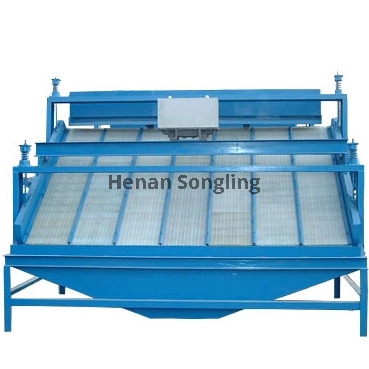

This series screens are always used in processing minerals such as ferrous metals including hematite & magnetic and nonferrous metals including lead, zinc, gold and silver etc. This machine works in a re-circulating network with ball mill, which can upgrade the fineness of ferrous and nonferrous metals. Its efficiency is twice as that of spiral classifier.
Working Principle of high frequency screen:
It differs from the conventional screens with breaking of the surface tension of slurry and small granularity's high speed vibration on sieve cover and accelerates the separating of large-density useful mines and increase the contacting probability of the materials smaller than output granularity and the sieve pore. Therefore produce good condition and make the materials smaller than the output granularity, especially the big-density materials and slurry get through the sieve pore together.
Technical Parameters
Model | Screen square(m2) | Density of feeding material(%) | Capacity(t/h) | Power(kw) |
GPS-4 | 4.5 | 30%-40% | 15-25 | 0.72 |
GPS-5 | 5.2 | 30%-40% | 20-30 | 1.1 |
GPS-6 | 6 | 30%-40% | 24-36 | 1.5 |
GPS-8 | 8.1 | 30%-40% | 32-48 | 2.2 |
